Replacement Ion Generator – (DF54 / DF64 Gen 2)

Coffee Grinder Model
$47.00 CAD
$47.00 CAD
GST included. Shipping calculated at checkout.

Eligible for free shipping on orders over $100

Dispatched within 1 - 2 business days

Inspected before dispatch

Details, Specs, Dimensions

Weight:

Length:

Width:

Material:

Made in: China
Shipping & Delivery

All orders are shipped with Australia Post and include tracking. Orders over $100 (including accessories) qualify for free standard shipping. Orders are dispatched within 1 to 2 business days. Check our Shipping Policy page for full details.
Returns & Refunds

Change your mind? No Worries - we make returns simple. See our Refund Policy for details.

Please note used consumable products (burrs and brushes) are not eligible for change-of-mind returns. If your item is faulty or not as described, you are always entitled to a refund or replacement.

This internal replacement ion generator is available in model-specific versions for the DF54 and DF64 Gen 2. It forms part of the grinder’s plasma ionisation system, helping to reduce static as coffee grounds pass through the exit chute.

Suitable for replacing a failed ion generator where the grinder’s static-reduction system is no longer functioning correctly. For more information on grinder static and how plasma ionisation helps reduce it, see our guide to reducing static when grinding coffee.

Compatibility:

Please select the correct version for your grinder when ordering. The DF54 and DF64 Gen 2 ion generators use different wiring configurations and are supplied as model-specific replacement parts.

Specifications:

  • Input: DC 12V
  • Power: ≤1W
  • Output: DC -5.5kV ±1kV
  • Output: DC +5.5kV ±1kV

Installation note: This is an internal service component and requires access to the grinder’s internal wiring for installation. Disconnect the grinder from mains power before opening or servicing the grinder. If you are not confident carrying out the installation, we recommend having the part fitted by a suitably experienced technician.

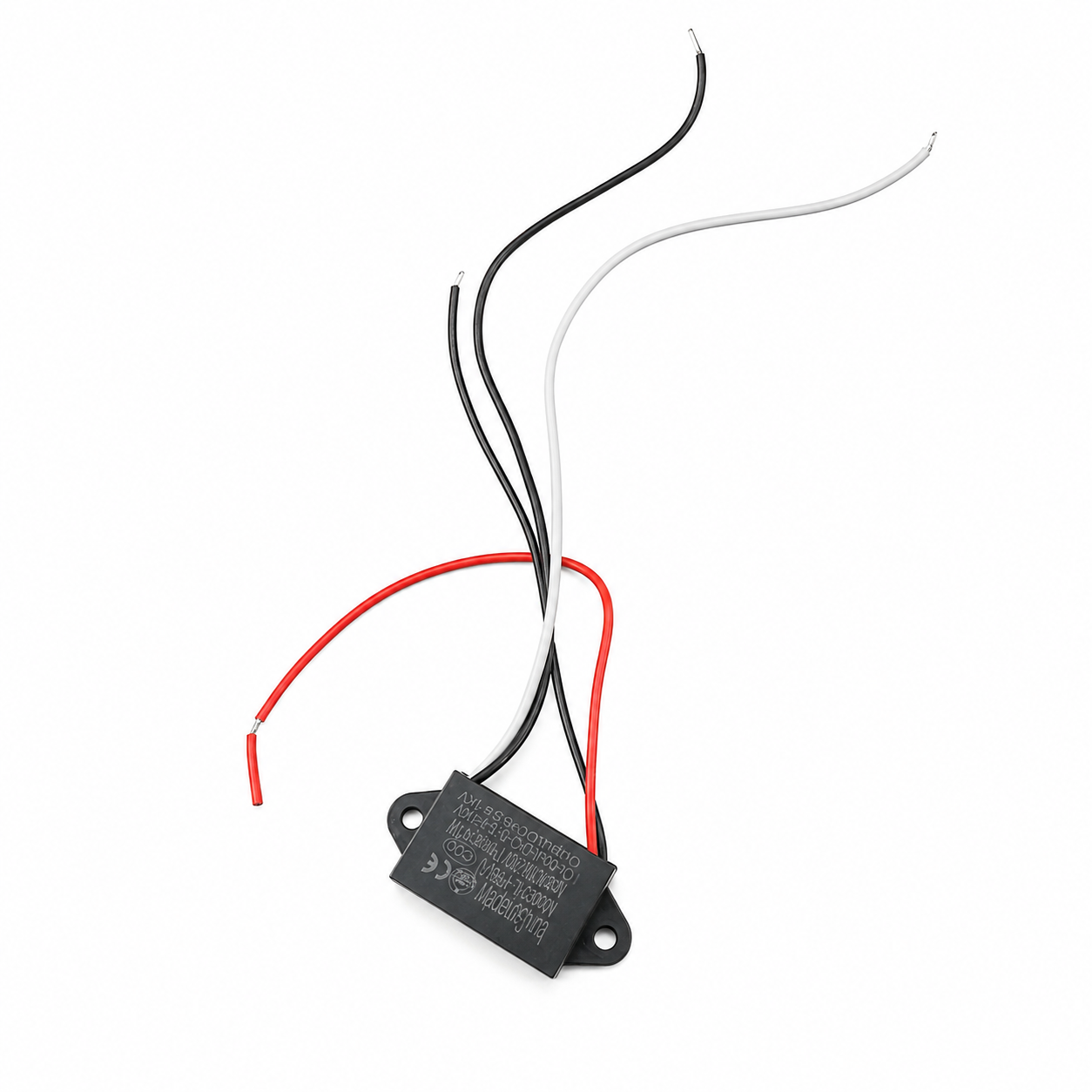

DF54 ion generator replacement part with wiring on a white background - Grind Logic

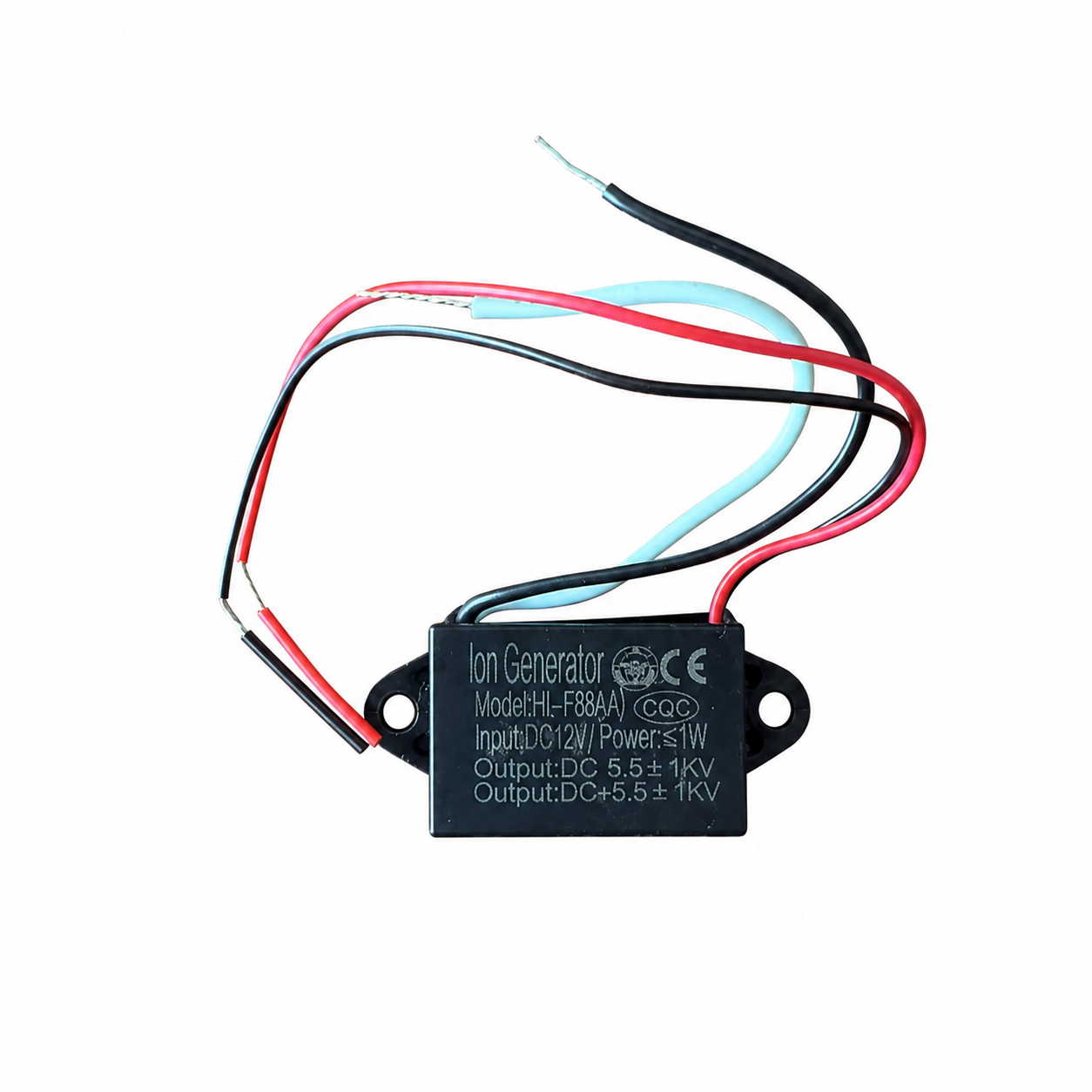

DF64 Gen 2 ion generator replacement part with wiring on a white background - Grind Logic
